Keysight MSOX6004A Mixed Signal Oscilloscope: 1 GHz - 6 GHz, 4 Analog Plus 16 Digital Channels

Product Detail

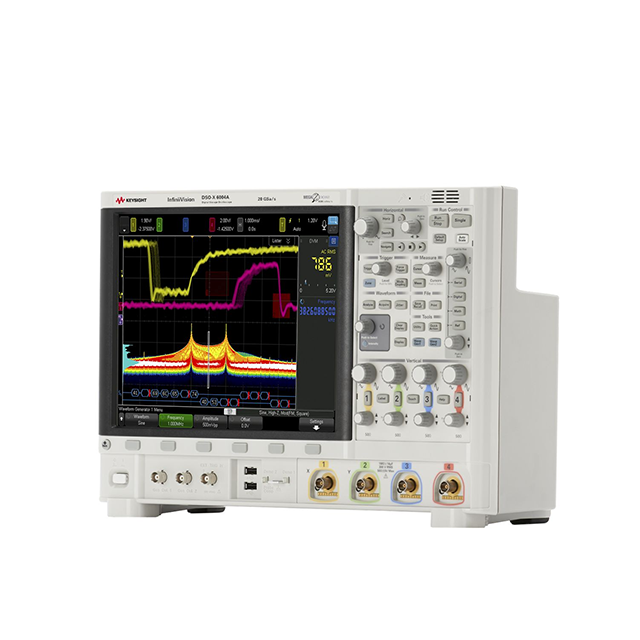

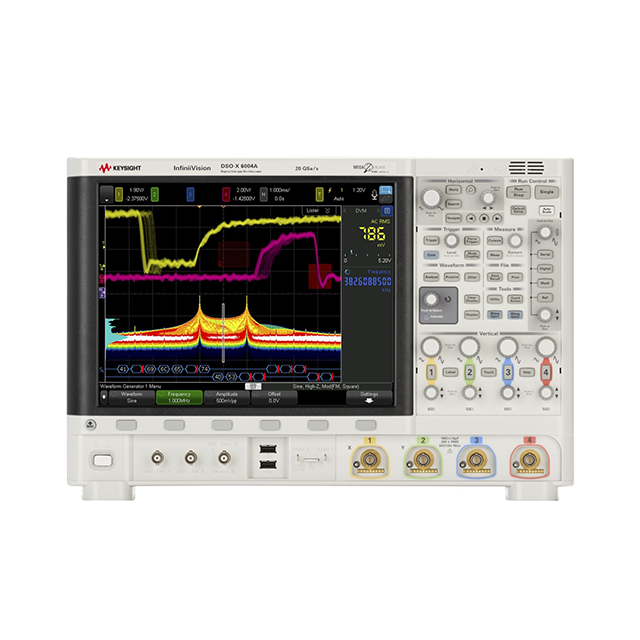

The Keysight MSOX6004A InfiniiVision 6000 X-Series Digital Oscilloscope is a lab-grade flagship instrument that combines oscilloscope, logic analyzer, signal generator, frequency counter, and protocol analysis in a single package.

Designed for engineers working with high-speed digital systems, RF/RF devices, automotive and power components.

With up to 6 GHz bandwidth, 20 GS/s sample rate, and 4 Mdots (1/2 channels) memory depth, the instrument provides accurate measurements and superior signal visualization.




The model is equipped with a 12.1-inch Full HD touchscreen display that supports multi-touch gestures and the Zone Touch Trigger function, which allows you to select the desired part of the signal with a simple touch. MegaZoom IV technology provides high-speed performance and waveform refresh rates of up to 450,000 forms/s.




MSOX6004A combines seven devices in one housing:




 Oscilloscope (4 analog + 16 digital channels)

 Serial Protocol Analyzer (up to 15 interfaces)

 20 MHz WaveGen Dual-Channel Signal Generator (Option DSOX6WAVEGEN2)

 Digital Voltmeter (DVM)

 Frequency Response Analyzer (Bode Plot)

 10-bit counter and tote (up to 3.2 GHz)

 Mask and Limit Testing Tools

The tool supports real-time jitter and eye analysis (D6000USBB, D6000BDLB options), RF signal analysis with FFT, and use of advanced buses (USB 2.0, CAN FD, LIN, FlexRay, ARINC 429, etc.).

With a low noise level (210 μVrms at 1 mV/div) and a resolution of up to 12 bits in High Resolution mode, the oscilloscope guarantees maximum accuracy when analyzing even the smallest signals.




Features

 1 GHz bandwidth (extendable under license to 2.5 / 4 / 6 GHz)

 Sample rate up to 20 GS/s (1/2 channels)

 Memory depth 4 Mtps (1/2 channels) / 2 Slots (all channels)

 Waveform update rate up to 450,000 forms/s

 Low noise level of 210 μVrms at 1 mV/div (6 GHz)

 Full HD 12.1" TFT Touch Display with Gesture Control

 Hardware Zone Touch Trigger

 Support for 56 automatic measurements and advanced math

 Hardware decoding of up to 15 protocols (USB, CAN, LIN, ARINC 429, MIL-STD-1553, etc.)

 Built-in mask and limit testing tools

 Compatible with BenchVue and Infiniium Offline software

 Voice control in 14 languages

Scope of application:




 Development and debugging of high-speed interfaces (PCIe, USB, Ethernet, SPI, I²C, etc.)

 RF Module and Power Supply Testing

 Diagnostics of embedded systems and automotive electronics

 Aerospace & Teleinfrastructure Electronics

 Research and Training Laboratories
