RE4650A - Dual 25A or Single 50A DC/DC Power Module (LTM4650A)
Product Detail
Dual 25A or Single 50A Output
Wide Input Voltage Range: 4.5V to 16V
Output Voltage Range: 0.6V to 5.5V
±1.5% Maximum Total DC Output Error Over Line, Load and Temperature
Differential Remote Sense Amplifier
Current Mode Control/Fast TransientResponse
Adjustable Switching Frequency
Overcurrent Foldback Protection
Multiphase Parallel with Current Sharing
Frequency Synchronization
Internal Temperature Monitor
Soft-Start/Voltage Tracking
Output Overvoltage Protection

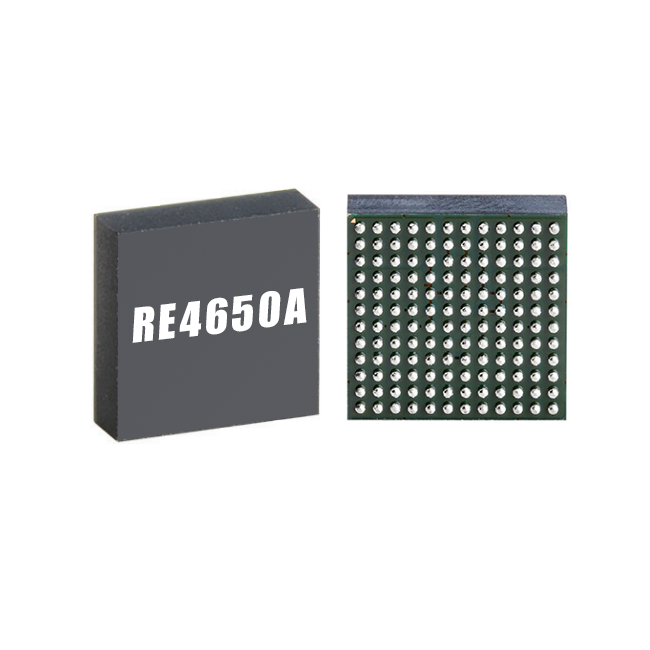

16mm × 16mm × 5.01mm BGA Packages
CPUs, FPGAs, DSPs and ASICs Applications
Telecom and Networking Equipment
Industrial Equipment
DESCRIPTION

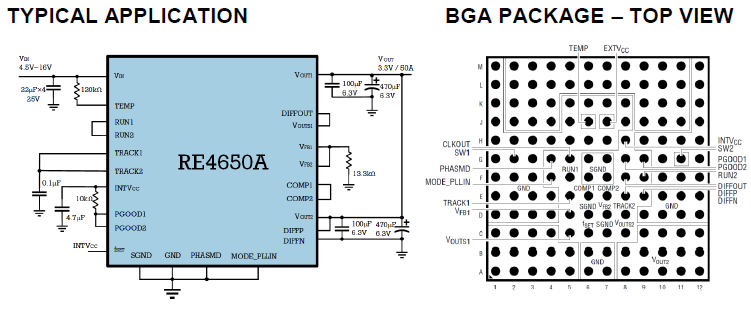

The RE4650A is a dual 25A or single 50A output switching mode step-down DC/DC regulator. Included in the package are the switching controllers, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4.5V to 16V, the RE4650A supports two outputs each with an output voltage range of 0.6V to 5.5V, each set by a single external resistor. Its high efficiency design delivers up to 25A continuous current for each output. Only a few input and output capacitors are needed.
The device supports frequency synchronization, multiphase operation and output voltage tracking for supply rail sequencing and has an onboard temperature diode for device temperature monitoring. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.
Fault protection features include overvoltage and overcurrent protection.
Pin to Pin and Bom to Bom LTM4650A.
FEATURES
APPLICATION
DEVICE INFORMATION
DEVICE | BALL FINISH | PACKAGE TYPE | MSL RATING | TEMPERATURE RANGE |
RE4650A | SAC305(RoHS) | BGA | 3 | -55℃ to 125℃ |
