RE4644 - Ultrathin Quad DC/DC Power Module with Configurable 4A Output (LTM4644)
Product Detail
Quad Output Step-Down Power Module Regulator with 4A per Output
Wide Input Voltage Range: 4V to 14V
Output Voltage Range: 0.6V to 5.5V
±1.5% Maximum Total DC Output Error Over Line, Load and Temperature
Current Mode Control/Fast Transient Response
Multiphase Parallel with Current Sharing
External Frequency Synchronization
Internal Temperature Monitor
Soft-Start/Voltage Tracking
Output Overvoltage, Overcurrent and Overtemperature Protection

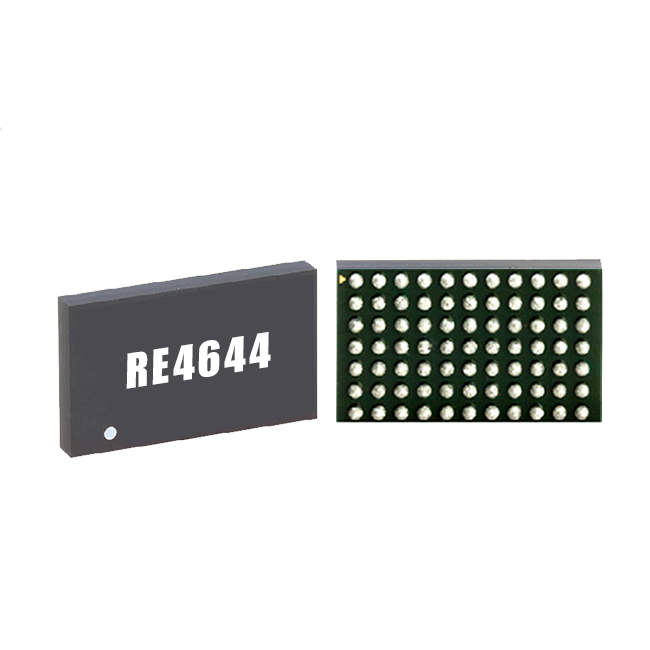

9mm × 15mm × 5.01mm BGA Packages
FPGAs, DSPs and ASICs Applications
Telecom and Networking Equipment
Industrial Equipment
DESCRIPTION

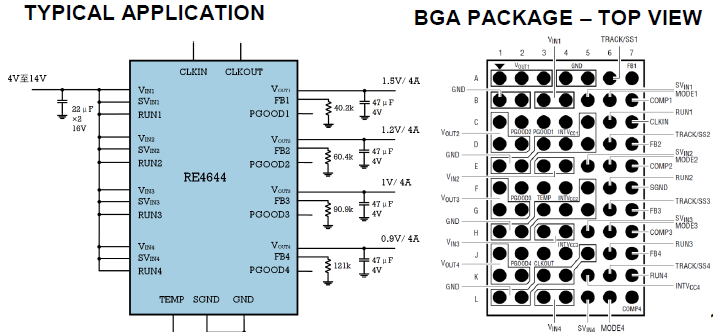

The RE4644 is a quad DC/DC Power Module Regulator with Configurable 4A Output. Outputs can be paralleled in an array for up to 16A capability.
Included in the package are the switching controllers, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4V to 14V, the RE4644 supports an output range of 0.6V to 5.5V, each set by a single external resistor. Its high efficiency design delivers up to 4A continuous current for each output. Only a few input and output capacitors are needed.
High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. Fault protection features include overvoltage and overcurrent protection. Pin to Pin and Bom to Bom LTM4644.
FEATURES
APPLICATION
DEVICE INFORMATION
DEVICE | BALL FINISH | PACKAGE TYPE | MSL RATING | TEMPERATURE RANGE |
RE4644 | SAC305(RoHS) | BGA | 3 | -55℃ to 125℃ |
