RE4643 - Ultrathin Quad DC/DC Power Module with Configurable 3A Output (LTM4643)
Product Detail
Quad Output Step-Down Power Module
Regulator with 3A per Output
Wide Input Voltage Range: 4V to 18V
Output Voltage Range: 0.6V to 3.3V
±1.5% Maximum Total DC Output Error Over Line, Load and Temperature
Current Mode Control/Fast Transient Response
Multiphase Parallel with Current Sharing
External Frequency Synchronization
Internal Temperature Monitor
Soft-Start/Voltage Tracking
Output Overvoltage, Overcurrent and Overtemperature Protection
9mm × 15mm × 2.42mm BGA Packages
FPGAs, GPUs and ASICs Applications
Telecom and Networking Equipment
Industrial Equipment
DESCRIPTION
The RE4643 is a quad DC/DC Power Module Regulator with Configurable 3A Output. Outputs can be paralleled in an array for up to 12A capability.
Included in the package are the switching controllers, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4V to 18V, the RE4643 supports an output range of 0.6V to 3.3V, each set by a single external resistor. Its high efficiency design delivers up to 3A continuous current for each output. Only a few input and output capacitors are needed.
High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. Fault protection features include overvoltage and overcurrent protection. Pin to Pin and Bom to Bom LTM4643.
FEATURES

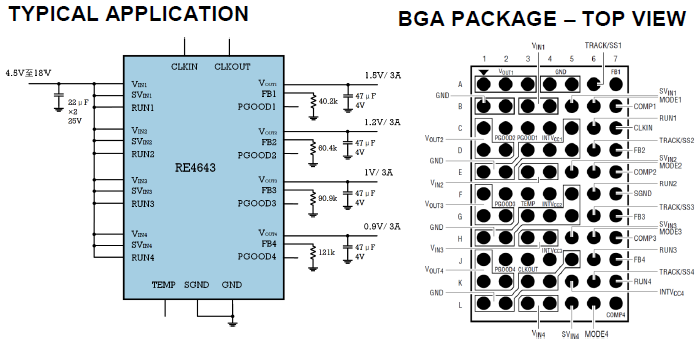

APPLICATION
APPLICATION
DEVICE | BALL FINISH | PACKAGE TYPE | MSL RATING | TEMPERATURE RANGE |
RE4643 | SAC305(RoHS) | BGA | 3 | -55℃ to 125℃ |
