RE4623 - Ultrathin 20VIN, 3A DC/DC Power Module (LTM4623)
Product Detail
Ultrathin, Complete Solution in < 1cm2
3A DC Output Output
Wide Input Voltage Range: 4V to 20V
Output Voltage Range: 0.6V to 5.5V
±1.5% Maximum Total DC Output Error Over Line, Load and Temperature
Current Mode Control/Fast Transient Response
Multiphase Parallel with Current Sharing
External Frequency Synchronization
Soft-Start/Voltage Tracking
Output Overvoltage, Overcurrent and Overtemperature Protection

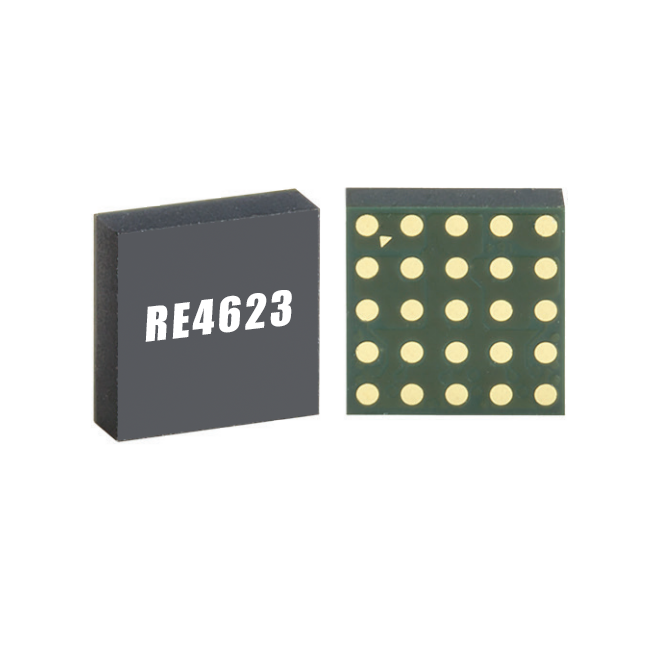

6.25mm × 6.25mm × 2.42mm BGA Packages
Telecom and Networking Equipment
PCIe and Backside PCB Mounting
Data Storage Rack Units and Cards
Industrial Equipment
DESCRIPTION

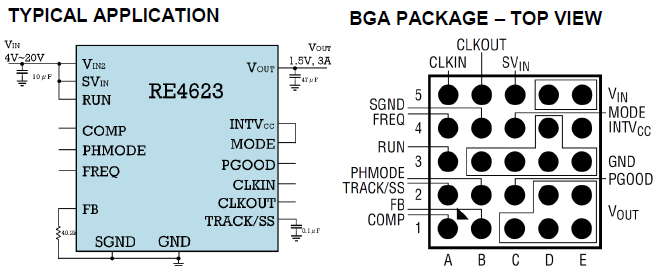

The RE4623 is a complete 3A step-down switching mode step-down DC/DC regulator. It is in a tiny ultrathin 6.25mm × 6.25mm × 2.42mm BGA Packages.
Included in the package are the switching controllers, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4V to 20V, the RE4623 supports an output with an output voltage range of 0.6V to 5.5V, set by a single external resistor. Its high efficiency design delivers up to 3A continuous current. Only a few input and output capacitors are needed.
The device supports frequency synchronization, multiphase operation and output voltage tracking for supply rail. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. Fault protection features include overvoltage and overcurrent and overtemperature protection.
Pin to Pin and Bom to Bom with LTM4623.
FEATURES
APPLICATION
DEVICE INFORMATION
DEVICE | BALL FINISH | PACKAGE TYPE | MSL RATING | TEMPERATURE RANGE |
RE4623 | SAC305(RoHS) | BGA | 3 | -55℃ to 125℃ |
