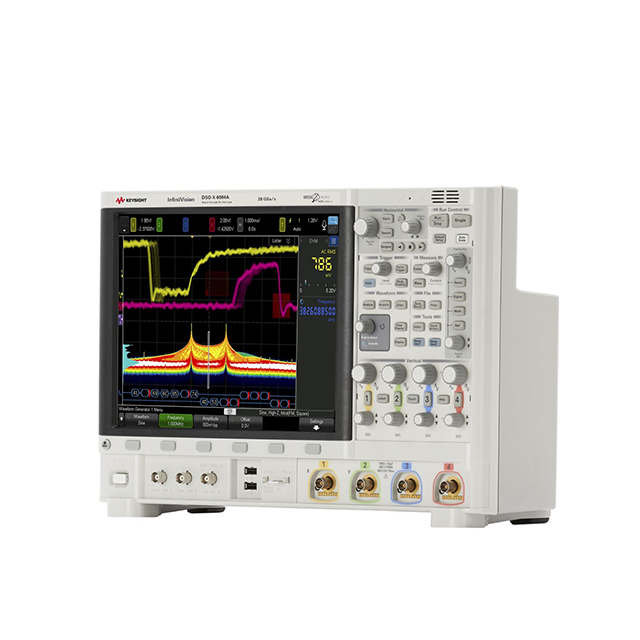

The Keysight DSOX6004A InfiniiVision 6000 Series X-Series Digital Oscilloscope is a next-generation, versatile tool designed for comprehensive high-frequency signal analysis and accurate testing of electronic systems.
The model combines laboratory accuracy with portability and the ability to expand parameters under license. With up to 6 GHz bandwidth, 20 GS/s sample rate, and waveform refresh rates of up to 450,000 waveforms/s, the oscilloscope is one of the most powerful handheld instruments in its class.
With a 12.1-inch Full HD touchscreen display with gesture control and MegaZoom IV smart memory technology, the oscilloscope offers fast response, accurate signal visualization, and easy operation.
Low self-noise (210 μVrms at 1 mV/div) enables accurate measurements of even weak signals, and support for more than 56 automated measurements and up to 15 protocols makes it a versatile solution for today's electronics, power, automotive, and RF applications.
The DSOX6004A model combines seven instruments in one housing:
Oscilloscope (4 analog channels, up to 6 GHz)
Serial Protocol Analyzer
20 MHz WaveGen Dual-Channel Signal Generator (Option DSOX6WAVEGEN2)
Digital Voltmeter (DVM)
Frequency Response Analyzer (Bode Plot)
10-bit counter/sweepstakes (up to 3.2 GHz)
Mask and Limit Testing Tools
Feature integration, voice control capability, segmented memory, hardware Zone Touch Trigger, jitter analysis, and real-world eye diagram analysis (D6000USBB, D6000BDLB options) make it an effective solution for laboratories, production lines, and R&D.
Scope of application:
Testing of high-frequency digital interfaces (USB 2.0, PCIe, CAN FD, FlexRay, etc.)
Analyze RF/RF modules, radio channels, amplifiers
Measurements in Power Electronics and Power Systems
Monitoring of embedded systems and data buses
Aerospace, Automotive & Telecommunications
Features
1 GHz bandwidth (extendable under license to 2.5 / 4 / 6 GHz)
Maximum sample rate of 20 GS/s (1/2 channels)
Memory depth 4 Mtps (1/2 channels) / 2 Slots (all channels)
Waveform update rate up to 450,000 forms/s
Full HD 12.1" TFT Touch Display with Gesture Control
Hardware Zone Touch Trigger
Support for up to 56 automated measurements and advanced math
Hardware decoding of I²C, SPI, UART, CAN, LIN, USB 2.0, FlexRay, ARINC 429, etc.
Jitter and eye analysis capabilities (D6000USBB, D6000BDLB options)
Supports built-in 20 MHz dual-channel WaveGen (Option DSOX6WAVEGEN2)
Compatible with BenchVue and Infiniium Offline software
