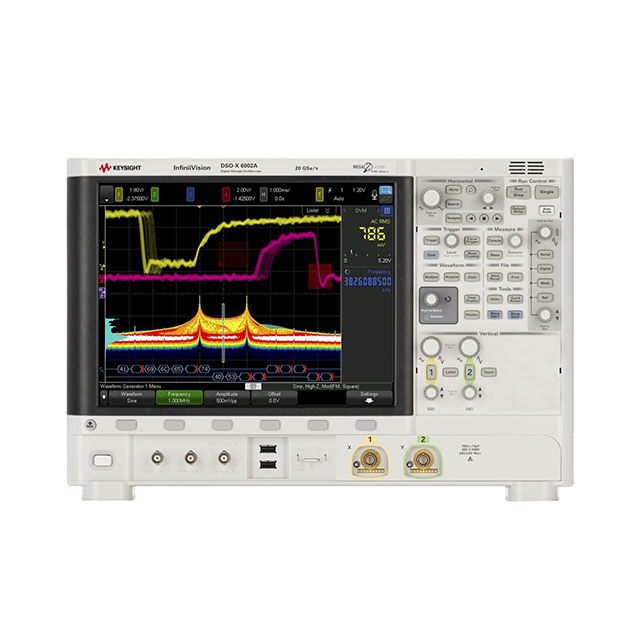

The Keysight DSOX6002A InfiniiVision 6000 Series X-Series Digital Oscilloscope is a next-generation, high-performance, handheld oscilloscope with up to 6 GHz bandwidth and 20 GS/s sample rate.
The model is aimed at professional laboratories, production sites and design offices where analysis of high-frequency signals, digital buses and power supplies is required.
The DSOX6002A oscilloscope combines seven instruments in one package:
Oscilloscope with analog channels up to 6 GHz
Serial Protocol Analyzer (up to 15 interfaces)
20 MHz WaveGen Dual-Channel Signal Generator (Option DSOX6WAVEGEN2)
3-digit digital voltmeter (DVM)
Frequency Response Analyzer (Bode Plot)
10-bit counter and tote (up to 3.2 GHz)
Tools for testing masks, limits, and search navigation
The oscilloscope provides visualization of complex processes with MegaZoom IV technology, a hardware Zone Touch trigger, and built-in analysis tools, from color and FFT spectrograms to real-world jitter analysis and eye diagrams.
Features
Bandwidth – 1 GHz (extendable under license to 2.5 / 4 / 6 GHz)
Maximum sample rate of 20 GS/s (1/2 channels)
Memory depth – 4 Mps (1/2 channels) / 2 Mps (all channels)
Up to 450,000 forms per second update rate
Low noise level - 210 μV rms at 1 mV/div (6 GHz)
Full HD 12.1" TFT Touch Display with Gesture Control
Hardware Zone Touch Trigger
Advanced math and up to 56 automatic measurements
Jitter Analysis and Real Eye Analysis Options (D6000USBB, D6000BDLB)
Hardware decoding of I²C, SPI, UART, CAN, LIN, USB, ARINC 429, etc.
Compatible with BenchVue and Infiniium Offline software
Voice control in 14 languages
Applications include
high-speed digital interface analysis and debugging, RF and RF testing, embedded system diagnostics, power electronics, automotive and aerospace applications, and R&D labs.
