Keysight MSOX4104G Mixed Signal Oscilloscope: 1 GHz, 4 Analog Plus 16 Digital Channels

Product Detail

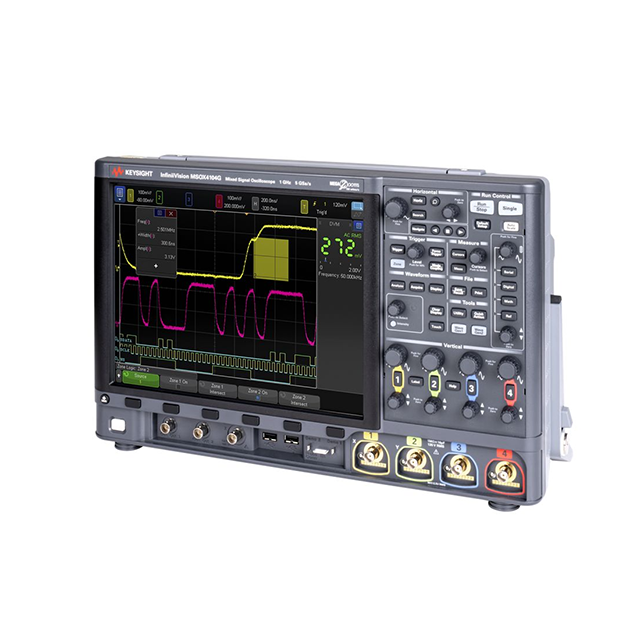

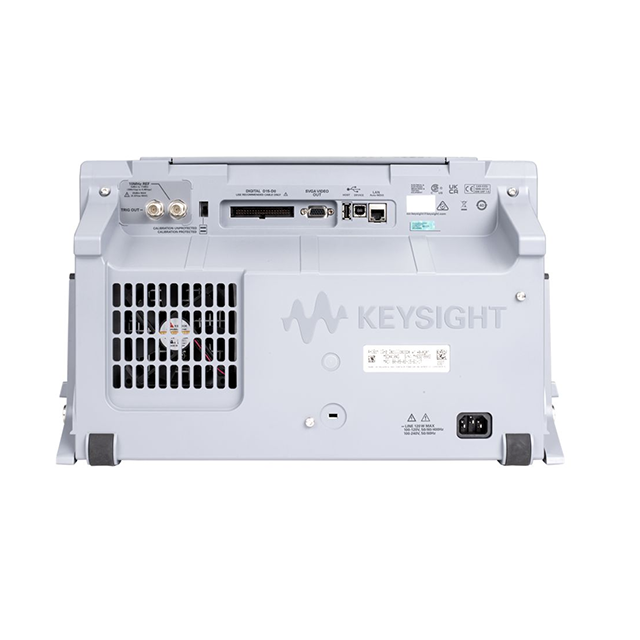

The Keysight MSOX4104G Mixed Signal Oscilloscope combines the functionality of a four-channel analog oscilloscope and a 16-channel logic analyzer.

The instrument enables synchronous analysis of analog and digital signals, making it ideal for embedded systems, data bus analyzers, and multi-level signal chains.




MSOX4104G features a 12.1" touchscreen display with gesture support, a built-in 20 MHz WaveGen oscillator, and a pre-installed D4000GENB software package that includes FRA, Bode Plot, Mask Test, and I²C, SPI, UART, CAN, LIN, and USB PD hardware decoding.




Features

 Combined analysis of analog (4) and digital (16) channels

 1 GHz frequency band, upgrade to 1.5 GHz

 5 GS/s sample rate (1/2 channels), 2.5 GS/s (all channels)

 Memory depth 4 mt / 2 chunk

 Up to 1,000,000 waveforms/s (MegaZoom IV ASIC)

 Built-in WaveGen 20MHz, DVM, Frequency Counter, Mask Test, and FRA

 12.1" touch interface with gestures

 Real-time hardware decoding of protocols (I²C, SPI, UART, CAN, LIN, USB PD)

 High Resolution mode (up to 12 bits) for precision measurements

 Compatible with BenchVue and Infiniium Offline software
