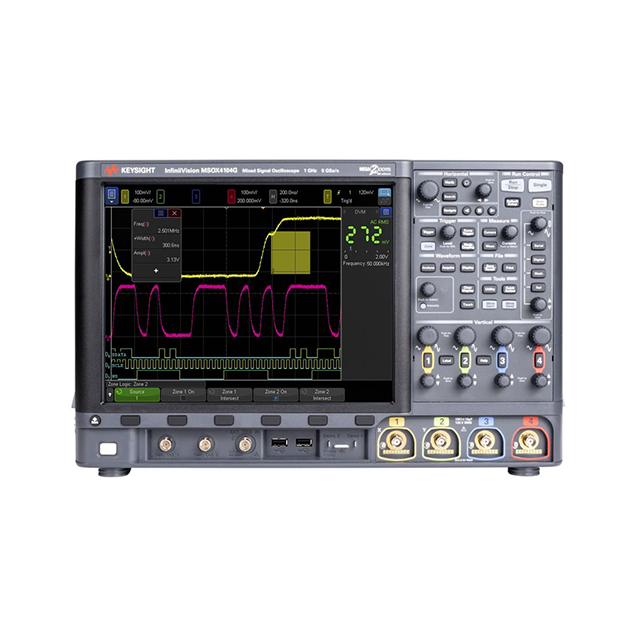

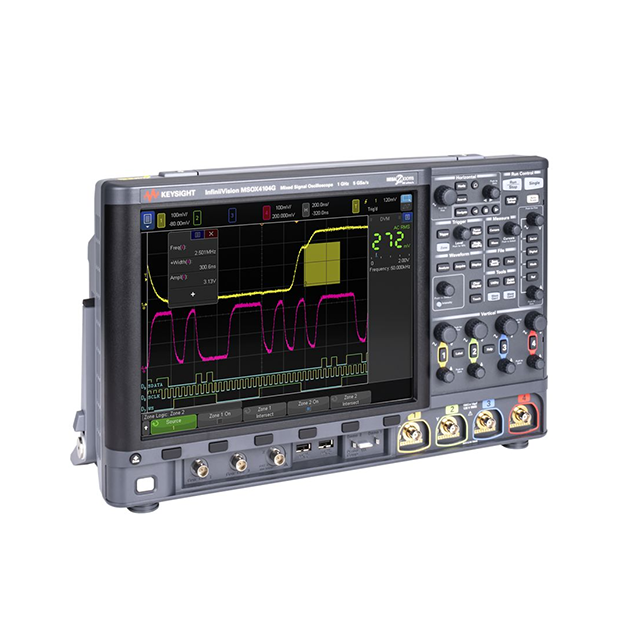

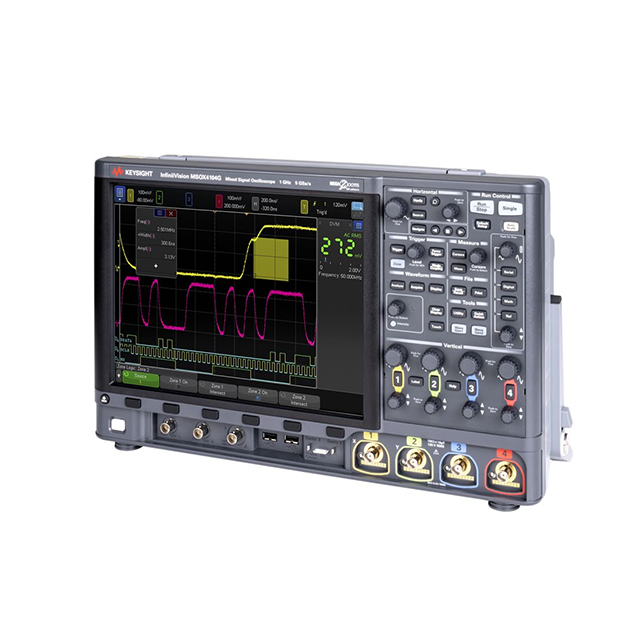

The Keysight DSOX4052G Digital Oscilloscope is a high-performance dual-channel InfiniiVision 4000G X-Series designed for accurate analysis of mid- and high-frequency analog signals.
It combines high sensitivity, speed, and built-in analysis tools, including a signal generator, frequency analysis (FRA), mask tests, and a built-in digital voltmeter.
The device is equipped with a bandwidth of 500 MHz, provides a sampling rate of up to 5 GS/s (1/2 channels) and a memory depth of up to 4 points.
MegaZoom IV ASIC technology provides refresh rates of up to 1,000,000 waveforms/s, allowing you to observe and capture even rare transients.
It is equipped with a 12.1" touch display, a two-channel WaveGen 20 MHz oscillator, and a frequency response analysis function (Bode Plot).
Features
2 analog channels, 500 MHz bandwidth
Sample rate up to 5 GS/s (1/2 channel)
Memory depth: 4 Mtps (1/2 channels) / 2 Mtps (all channels)
Update rate up to 1,000,000 waveforms/s
MegaZoom IV ASIC technology for fast response and visualization
Built-in 20 MHz dual-channel WaveGen oscillator
Support FRA / Bode Plot (in G standard)
Mask and limit tests for automatic control
Hardware decoding and triggers via I²C, SPI, UART, CAN, LIN, USB PD
High Resolution mode (up to 12 bits) for accurate measurements
12.1" touch control with gesture support
Seamless integration with BenchVue and Infiniium Offline software
