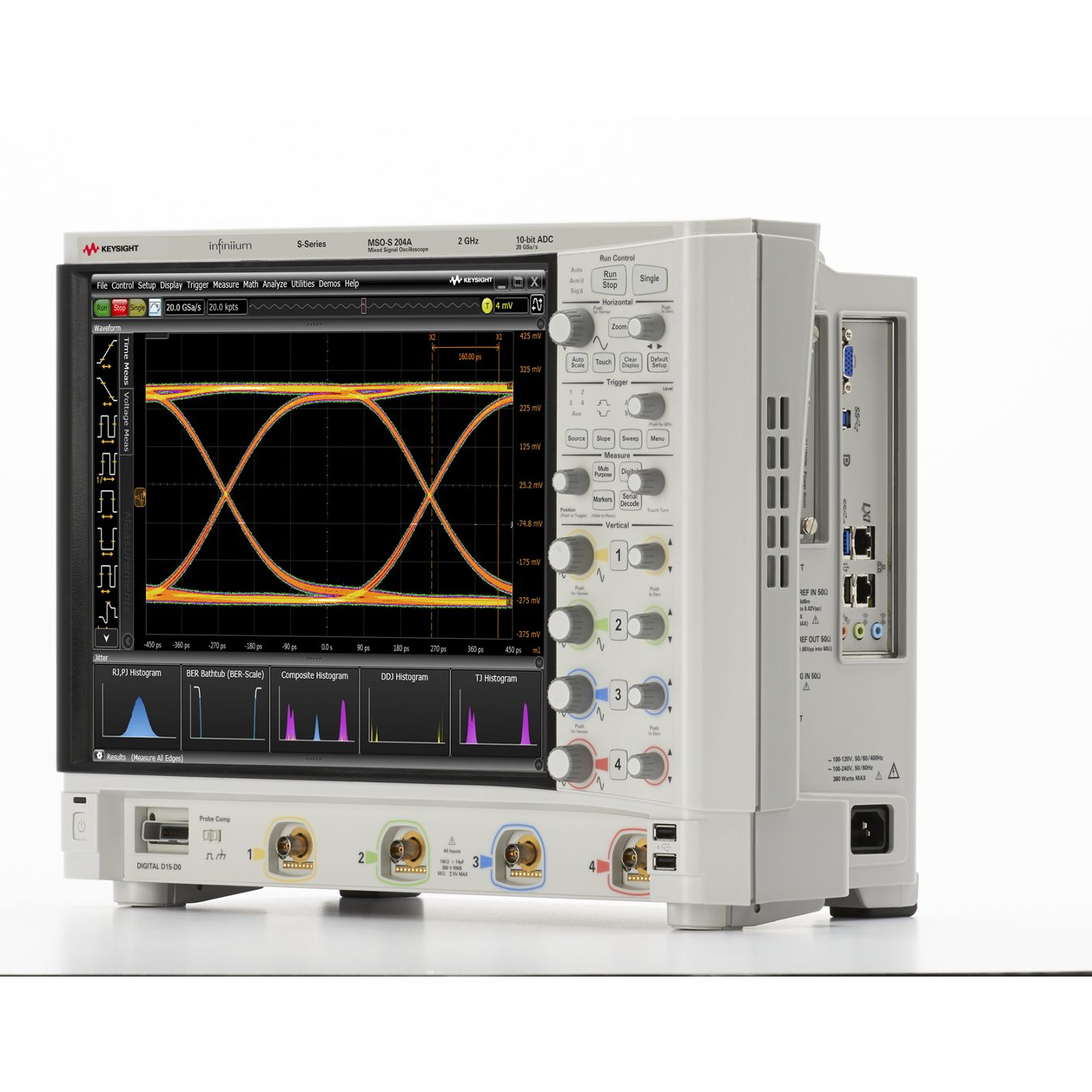

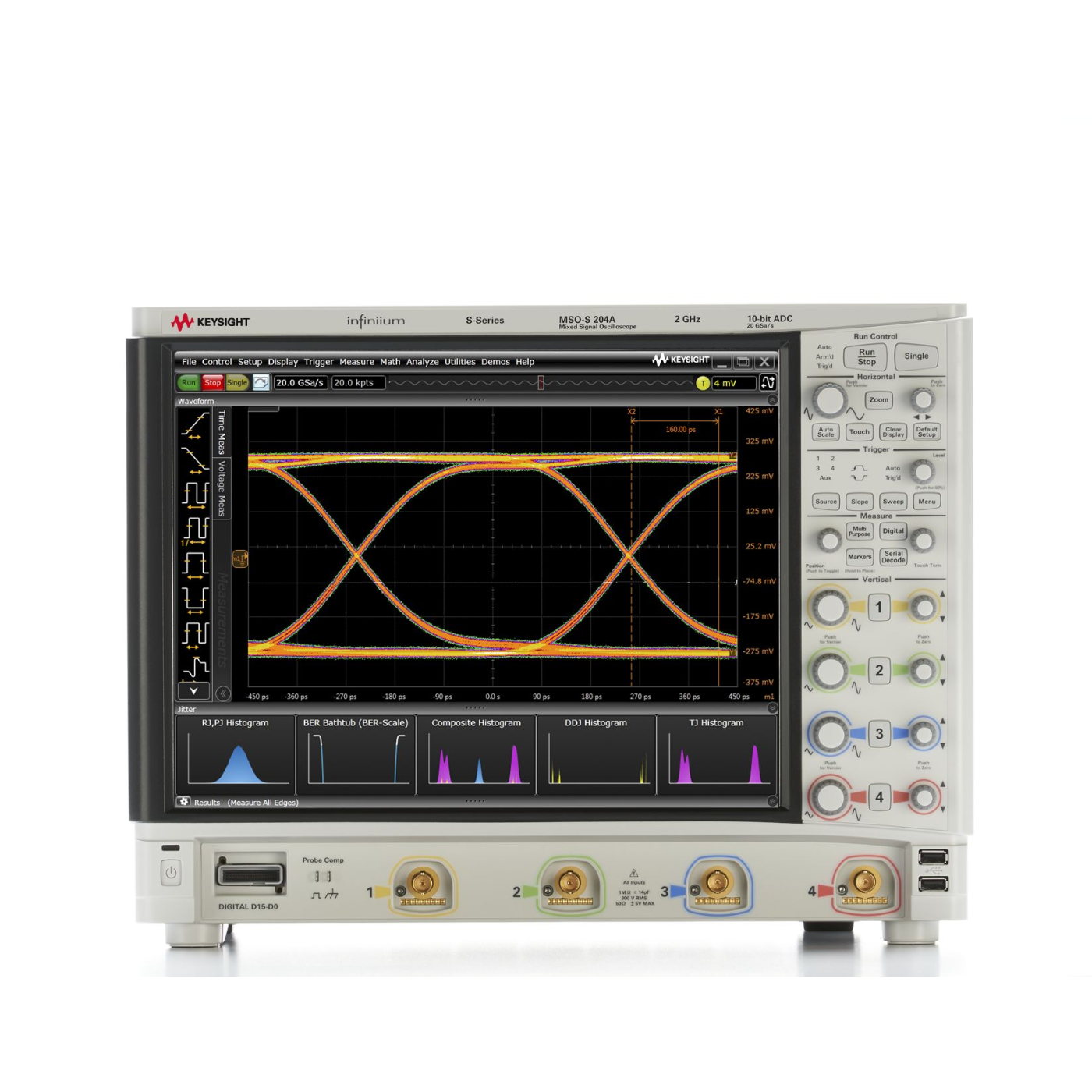

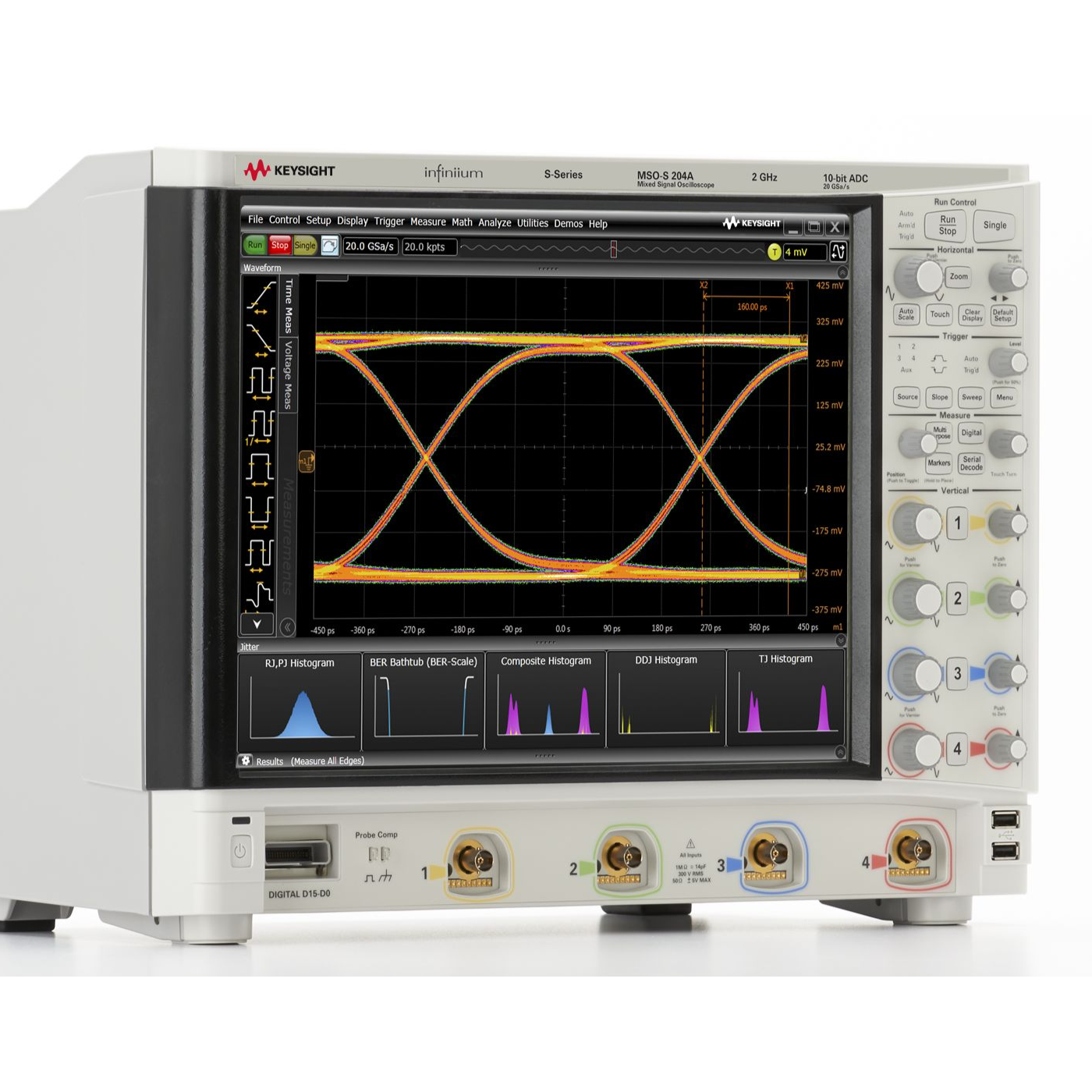

Keysight MSOS204A High-Definition Oscilloscope: 2 GHz, 4 Analog Plus 16 Digital Channels

Product Detail

HIGHLIGHTS

2 GHz bandwidth (upgradable)

4 analog plus 16 digital channels

achieve up to 16 bits of vertical resolution with our advanced system architecture

capture a longer signal trace with 20 GSa/s max sample rate and 100 Mpts/channel of standard memory

get superior signal integrity with an average system effective number of bits (ENOB) of 8.1 bits at full bandwidth

gain increased usability with the multi-touch supported 15-inch capacitive touch screen and solid state drive for fast boot and reliability

improve your testing with a wide range of protocol, compliance, and analysis software




What's included:

four N2873A 500-MHz passive probes

probe accessory pouch

Keysight I/O libraries suite

localized power cord, front panel cover

8 GHz BNC calibration cable

keyboard and mouse

user guide and programmer’s guide ship on oscilloscope drive

service guide available on Keysight.com

16-channel flying lead set logic probe, MSO cable, and MSO calibration fixture
