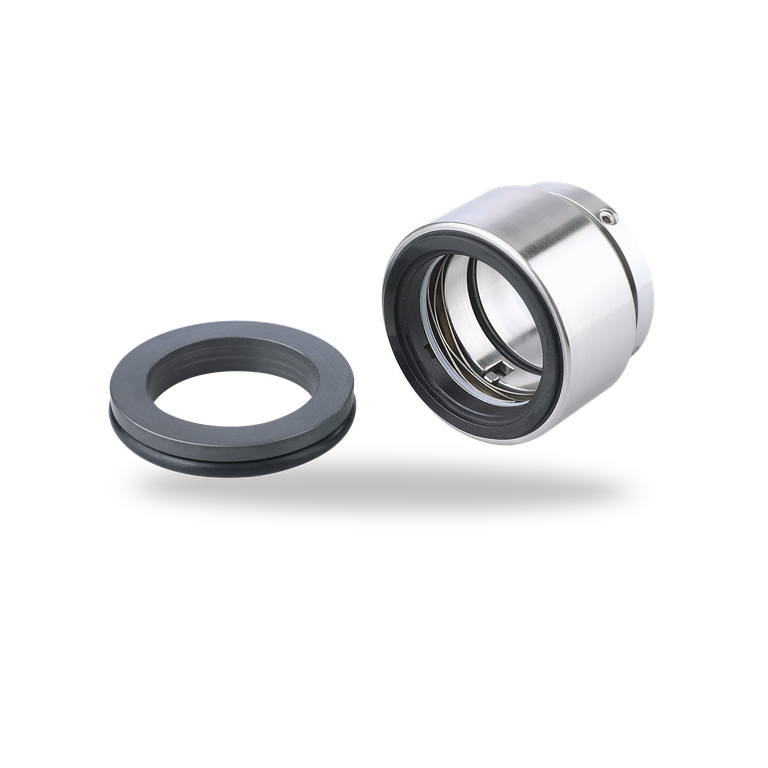

Product Detail
- For unstepped shafts
- Single seal
- Balanced
- Independent of direction of rotation
- Encapsulated rotating spring
- Especially designed for solids containing and highly viscous media
- Springs are protected from the product
- Rugged and reliable design
- No damage of the shaft by dynamically loaded O-Ring
- Universal application
- Variants for sterile operation available
- Increased axial movement
- DiamondFace coating possible
- Spring protection and vibration damping
- Insensitive to temperature changes
- 100 % compatible to HJ9... for l1k
- EN 12756
- WRAS
- UBA(KTW)
- Water and waste water technology
- Drinking water
- Chemical industry
- Oil and Gas
- Petrochemical industry
- Refining technology
- Pulp and paper industry
- Power plant technology
- Mining industry
- Metal production and processing
- Special applications (Cement, ...)
- Shipping Industry
- Food and beverage industry
- Pharmaceutical industry
| Item | Description |
| 1 | Seal face |
| 2 | Face housing |
| 3, 5, 7, 9, 12 | O-Ring |
| 4 | Square pin |
| 6 | Spring |
| 8 | Driver |
| 10 | Set screw |
| 11 | Seat |
Features
Advantages
Operating range
Shaft diameter:
d1 = 18 ... 100 mm (0.71" ... 4")
Pressure:
p1*) = vacuum ... 40 bar (vacuum ... 580 PSI)
Temperature:
t = -50 °C ... +220 °C (-58 °F ... +430 °F)
Sliding velocity: vg = 20 m/s (66 ft/s)
Axial movement:
d1 = 18 ... 25 mm: ±0,5 mm
d1 = 28 ... 55 mm: ±0,8 mm
d1 = 60 ... 100 mm: ±1,0 mm
* An integral stationary seat lock is not needed within the permissible low pressure range. For prolonged operation under vacuum it is necessary to arrange for quenching on the atmospheric side.
Materials
Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (eSIC-Q7)
Seat G6: Silicon carbide (eSIC-Q7)
Secondary seals: E, EL, V, V16, K, KL, P
Springs: CrNiMo steel (G)
Face housing: CrNiMo steel (G)
Driver: Duplex (G1)
Standards and approvals
Recommended applications
eHJ
eSHJ
Notes
Variant for sterile applications available. Please inquire.
