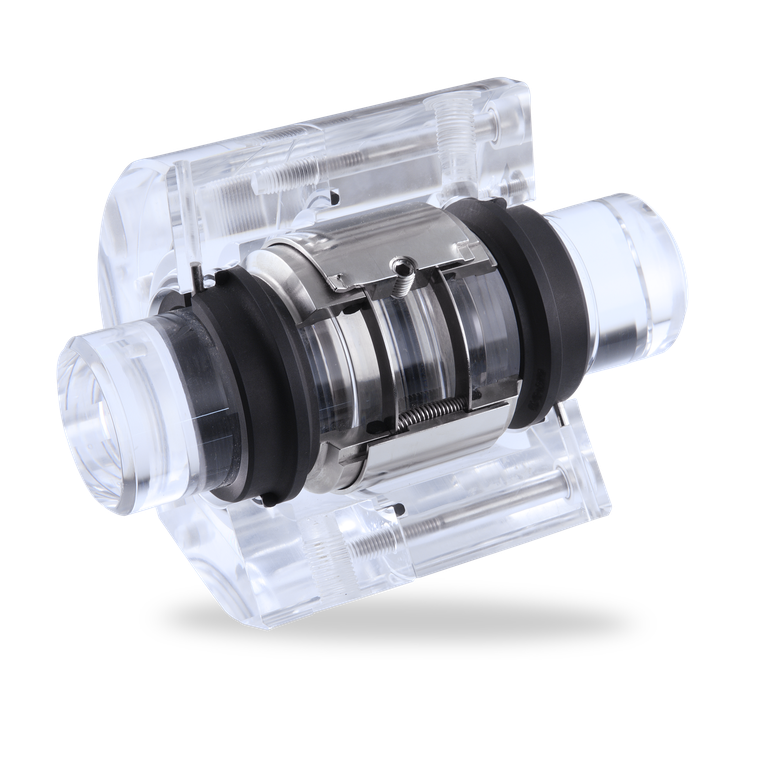

H74-D Pusher Seals - Mechanical Seals For Pumps

Product Detail

Item	Part no. to DIN 24250	Description
1.1	472.1	Seal face
1.2	472.2	Seal face
1.3	474	Thrust ring
1.4	485	Drive collar
1.5	477	Spring
1.6	904	Set screw
1.7	412.1	O-Ring
1.8	412.2	O-Ring
2	475.1	Seat (G9)
3	412.3	O-Ring
4	475.2	Seat (G9)
5	412.4	O-Ring


1) d1 > 100 mm: 2 mm x 30°
2) d1 > 100 mm: 30°
3) d1 > 100 mm: H7
4) d1 > 100 mm: +0.1




Features

• For stepped shafts
• Dual seal
• Balanced
• Rotating multiple springs
• Independent of direction of rotation
• Seal concept based on the H7 range
• Variant with pumping screw available (H74F-D)

Advantages

• Efficient stock keeping due to easily interchangeable faces
• Extended selection of materials
• Flexibility in torque transmissions
• Insensitive to low solids contents
• EN 12756 (For connection dimensions d1 up to 100 mm      (3.94"))

Operating range

Shaft diameter:
d1 = 14 ... 200 mm (0.55" … 7.87")
Pressure:
p1 = 80 bar (1,160 PSI) for d1 = 14 ... 100 mm,
p1 = 25 bar (363 PSI) for d1 = 100 ... 200 mm,
p1 = 16 bar (232 PSI) for d1 > 200 mm
Temperature:
t = -50 °C ... 220 °C (-58 °F … 428 °F)
Sliding velocity: vg = 20 m/s (66 ft/s)
Axial movement:
d1 up to 100 mm: ± 0.5 mm
d1 from 100 mm: ± 2.0 mm

Materials

Seal face: Silicon carbide (Q1, Q2), Carbon graphite antimony impregnated (A), Aluminium oxide (V), Special cast CrMo steel (S)
Seat G9: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1*, Q2*)
Secondary seals: EPDM (E), NBR (P), FKM (V), FFKM (K)
Springs: CrNiMo steel (G)
Metal parts: CrNiMo steel (G), Duplex (G1)
* Cannot be combined with seal face made of S

Standards and approvals

• EN 12756

Recommended applications

• Process industry
• Oil and gas industry
• Refining technology
• Petrochemical industry
• Chemical industry
• Power plant technology
• Pulp and paper industry
• Low solids content and low abrasive media
• Toxic and hazardous media
• Media with poor lubrication properties
• Adhesives
• Chemical standard pumps
