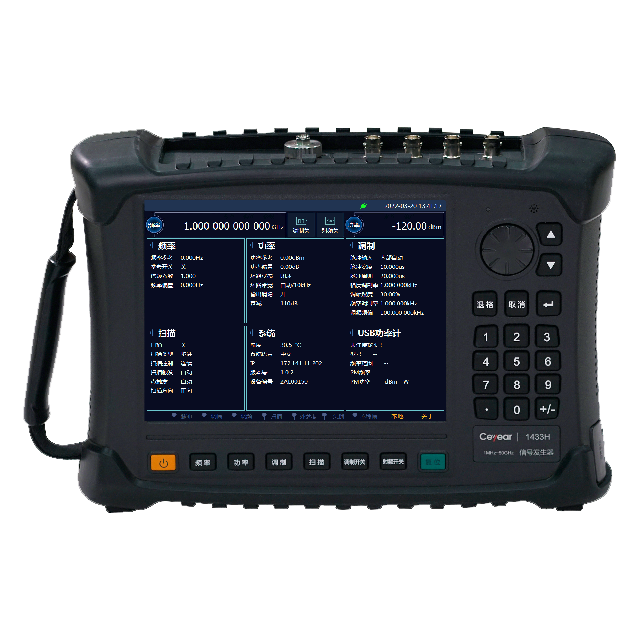

1433 Series signal generator is a hand-held instrument specially designed for field testing by Ceyear Technology Co., Ltd. It has the functions of CW signal output, FM/AM/Pulse/PM modulation, large dynamic range amplitude adjustment, step/list sweep etc. The integrated design of 8.4-inch large capacitive touch screen is convenient for users’ operation.
1433 series signal generator has the characteristics of small size, flexible power supply and good working environment adaptability, which is very suitable for on-site use. It can be applied to the field installation, debugging and daily maintenance of fault diagnosis of electronic integrated system, receiver performance test, communication, navigation and other equipment test.
Product Features
Wider frequency coverage: from 1MHz to 50GHz
Higher frequency resolution: 0.1Hz
Excellent phase noise performance: -110dBc/Hz@10kHz frequency offset @10GHz carrier(typical）
Various auxiliary test interfaces: reference input/output, pulse input, monitoring output, synchronization output etc.
Convenient and fast user operation experience: 8.4-inch large screen with bright LCD, convenient capacitive touch screen operation, integrated design of LCD and touch screen
Strong environmental adaptability: the working temperature range is -10℃~50℃
Flexible power supply mode: can be powered by battery or power adapter
