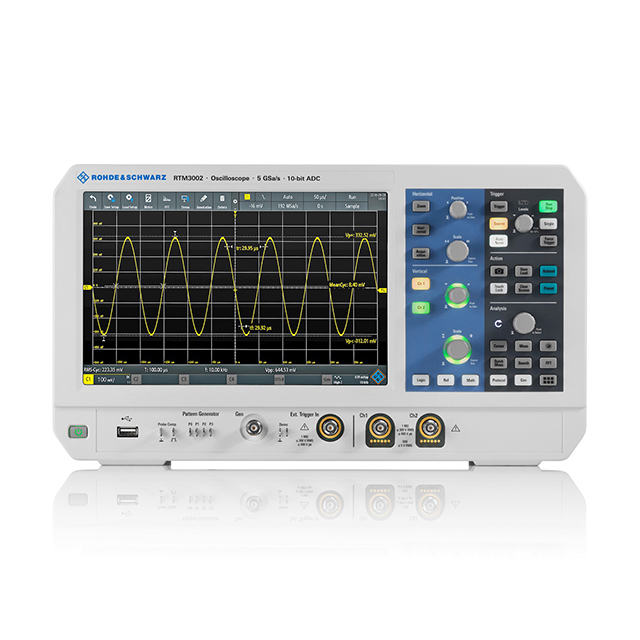

The digital oscilloscope is equipped with 16 logic channels and 2 analog channels. The 10-bit ADC provides a fourfold improvement in vertical resolution and the connection of multiple electronic components.
Main features:
The bandwidth for logical channels is 400 MHz, for analog channels - 200 MHz.
Sample rate 2.5 GW/s.
The rise time is 3.5 ns.
Sweep range from 0.5 ns/div to 500 s/div.
Mask testing will help when diagnosing boards and equipment of the same model, for example, in production and in service centers.
Update speed up to 64 waveforms per second, which allows you to perform more than three dozen different measurements.
A logic analyzer that allows you to work with mixed signals.
SPI and CAN/LIN buses allow instant message transmission from one integrated circuit to another. The oscilloscope is not only capable of reproducing signals, but also creating them, which allows you to test data interfaces.
QuickView technology and support for Fast Fourier Transform allow you to process the accumulated information instantly. Also, when using automatic mathematical operations, you will quickly create a visual report.

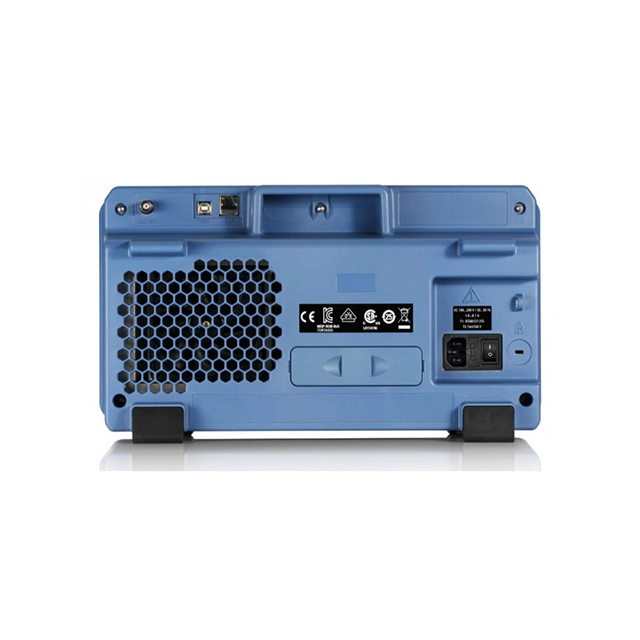

The USB port located on the oscilloscope body is designed to connect external storage devices. You can also use removable media to update the oscilloscope firmware.
The LAN interface is used to transmit the measurement results to the local network. With it, you can use the Rohde&Schwarz oscilloscope RTM3002 in classrooms in educational institutions or to demonstrate progress to customers.
The built-in memory of the oscilloscope is designed for 2048 samples of 6 bits. This allows you to quickly analyze the status of boards with a large number of components without having to transfer intermediate results to external storage media.
The 10.1-inch capacitive display makes it easy to view all relevant measurement results. Touch controls make it easy to enter data, and you can annotate and mark waveform areas while you are taking measurements.
