10 MHz to 43.5 GHz, 2 and 4 ports, one or two sources.
Highlights
Reach for Unrivaled Excellence

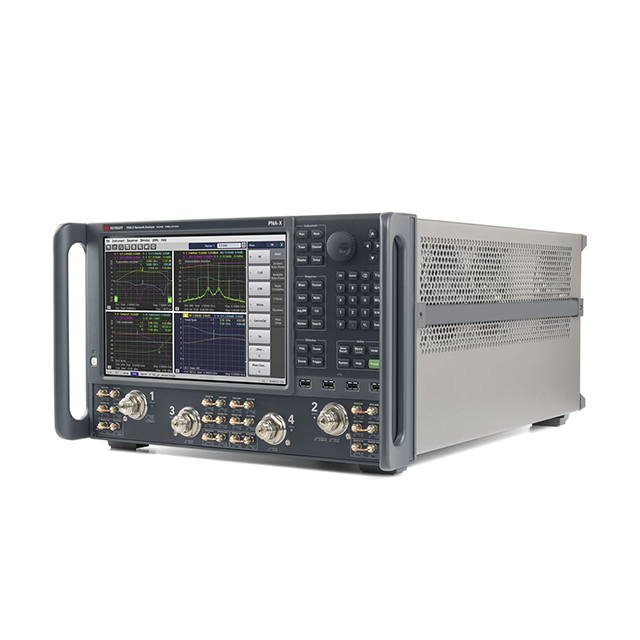

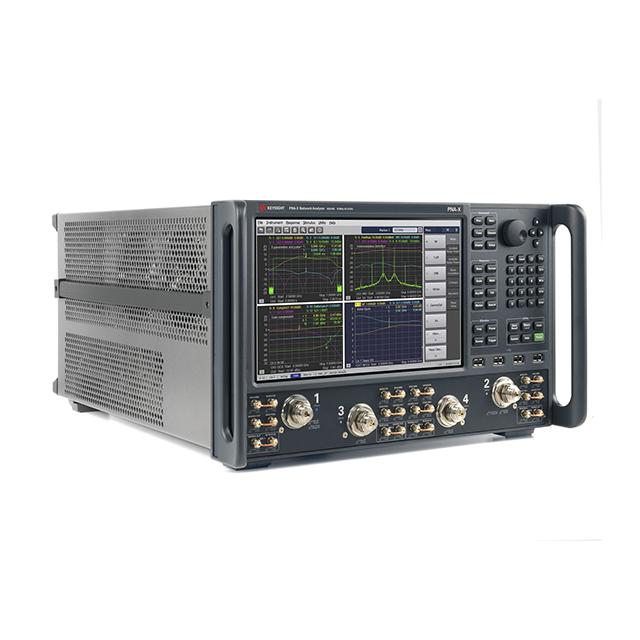

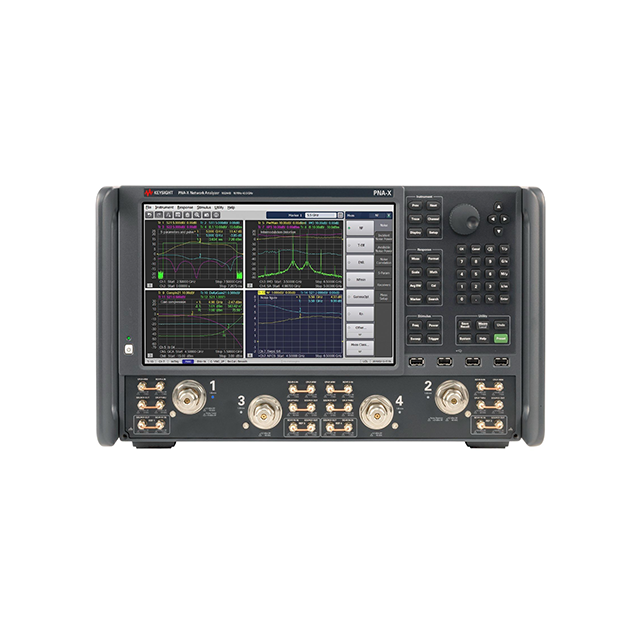

The N5244B PNA-X network analyzer is a versatile microwave test instrument designed for measuring active devices like amplifiers, mixers, and frequency converters.
The hardware integrations include two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators, generators, switches, and RF access points.
With all these features, perform a wide range of linear and nonlinear measurements using a single set of connections to your device under test.
simplify your test system and replace an entire rack of equipment with a single instrument
get frequency coverage from 900 Hz to 43.5 GHz, a dynamic range of 124 dB, and harmonics at -60 dBc
reduces test time due to the extensive array of single-connection measurement applications available
ensure accurate linear and nonlinear device characterization using advanced error correction techniques to implement fast, accurate, and user-friendly advanced RF testing
Key performance data for the N5244B includes:
high source output power ranging from +13 dBm at 1 GHz to +11 dBm at 67 GHz
low receiver noise floor and high receiver compression level
measurement speed range of 3.6 to 23 μsec/point
high stability with less than 0.03 dB/°C drift
