10 MHz to 26.5 GHz, 2-ports with one source and 4-ports with two sources, source and receiver attenuators, bias-tees, pulse generators and modulators, noise figure, and best RF performance
Highlights
New DDS Synthesizers Improve PNA Measurement Performance

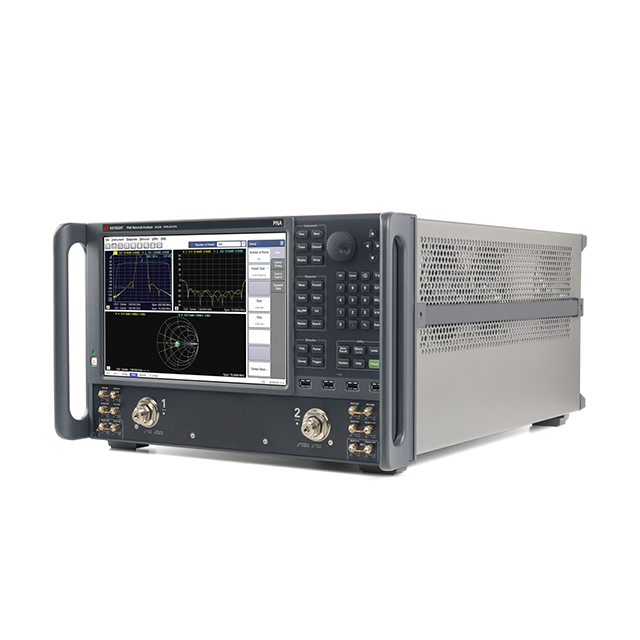

The N5222B PNA vector network analyzer (VNA) offers industry-leading performance for testing active devices. Built-in pulse modulators and pulse generators provide pulsed S-parameter measurements quickly and accurately.
Investigate, characterize, and troubleshoot your designs with a variety of measurement applications using network analysis software applications. The advanced test software applications available on the N5222B PNA network analyzer make it an industry leader in testing amplifiers, mixers, and frequency converters. Overcome your toughest measurement challenges with the highest-performance N5222B PNA network analyzer:
choose 2-port single-source or 4-port dual-source versions
measure S-parameters with the smallest uncertainty and highest stability
characterize active components efficiently with applications that simplify your test setup
balance budget and measurement needs by customizing for your ideal level of performance
accelerate component behavior insights using a multitouch display and intuitive GUI
What's included:
plug, hole, bottom foot
installation and quick-start guide
safety manual
calibration certificate
3 inductors (ferrite cores)
wrench
cable tie
optical mouse
