10 MHz to 67 GHz, 2-ports with one source and 4-ports with two sources, source and receiver attenuators, bias-tees, pulse generators and modulators, noise figure, and best RF performance.
Highlights
A Powerful Combination of Hardware and Software

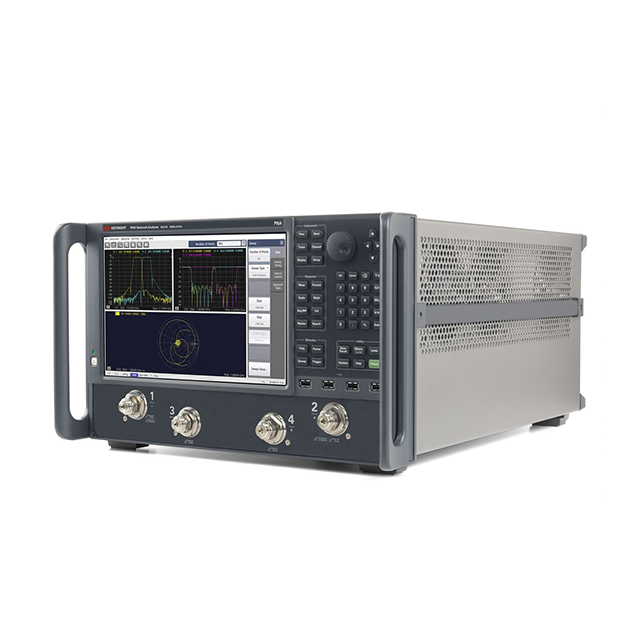

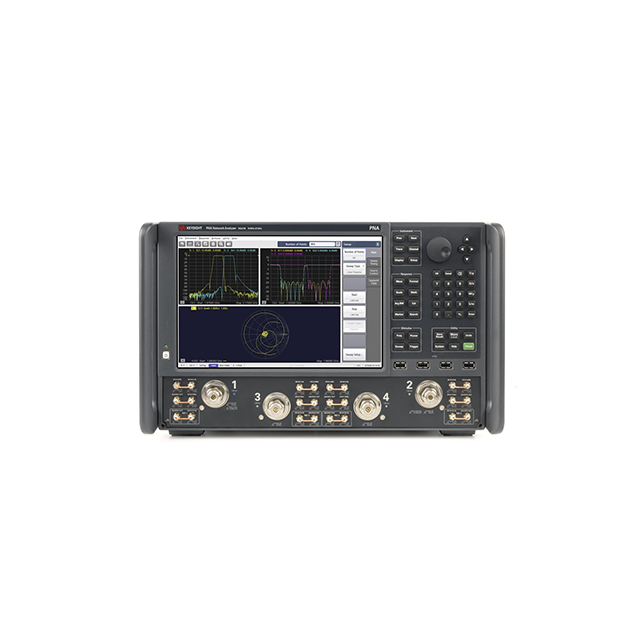

The N5227B PNA network analyzer combines hardware and test software applications to deliver fast and accurate measurements for a variety of devices. Utilize network analysis software applications to explore, define, and resolve issues in your devices under test. Parameterize your amplifier, mixer, and frequency converter behavior with advanced test software applications including noise figure, EVM, and pulsed-RF.
Solve your most complicated measurement challenges with the N5227B VNA:
choose 2-port single-source or 4-port dual-source versions
leverage built-in pulse modulators and pulse generators for pulsed S-parameter measurements
get low receiver noise floor and high receiver compression level
achieve fast measurement speed: 3.6 to 23 μsec/point
measure S-parameters with the smallest uncertainty and highest stability
