产品介绍
136 channels, 350 MHz state, 12.5 GHz timing zoom, 2.5 GHz timing, 2 Mb depth standard

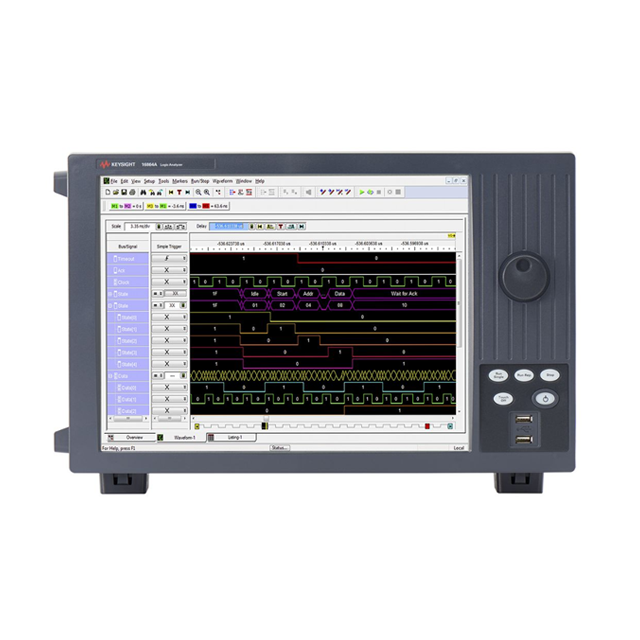

15-inch (38.1 cm) color, touch-screen display for viewing and quickly navigating large numbers of signals and buses

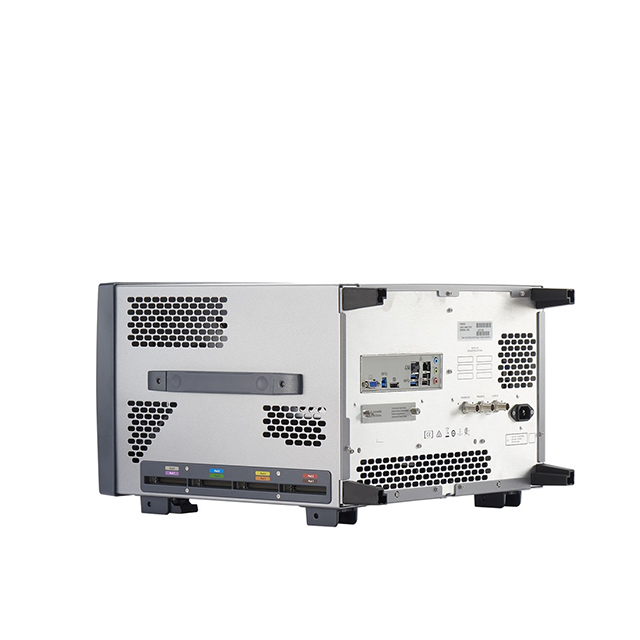

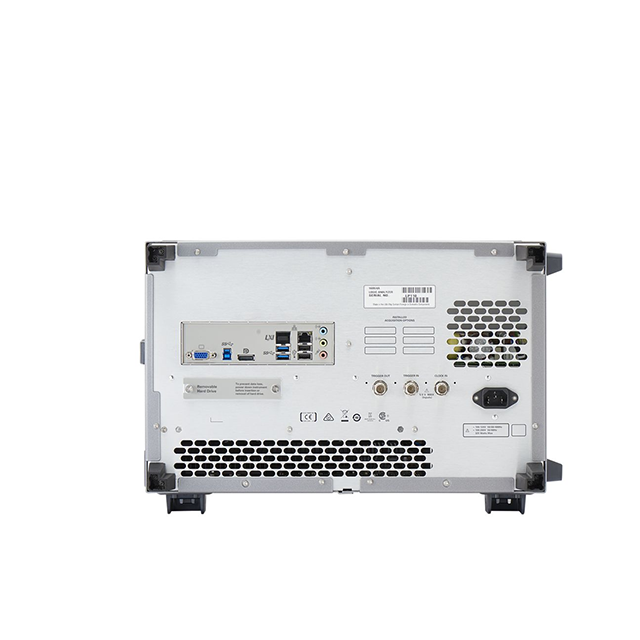

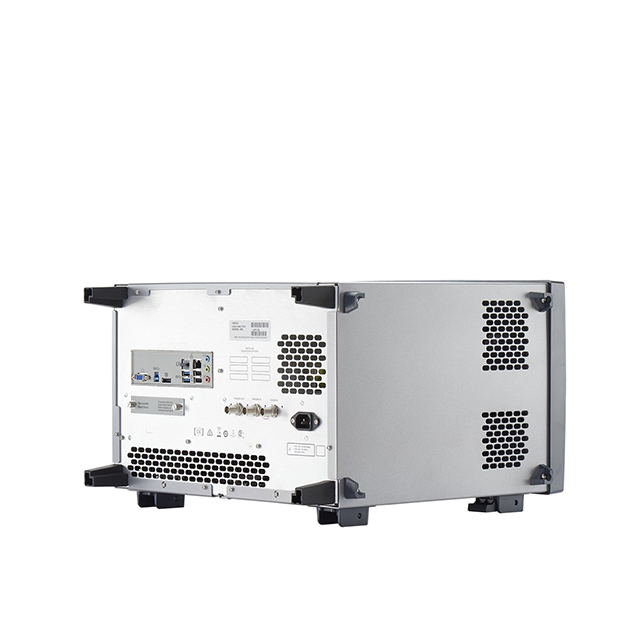

built-in removable SSD drive, USB 3.0 ports, and LAN for fast data transfer and storage of large amounts of data
1.4 GHz trigger sequencer to ensure high-speed events are captured
up to 2.5 GHz / 5.0 GHz / 10GHz (full- / half- / quarter-channel) timing for capturing signal activity at high resolution
up to 128 Mb / 256 Mb / 512Mb (full- / half- / quarter-channel) deep memory for identifying the root cause of a problem and symptom widely separated in time
12.5 GHz (80 ps) timing zoom with 256K memory depth for analysis of the trigger event with high resolution
state data rates up to 1.4 Gb/s, state clock rates up to 700 MHz for high-speed data capture
automated threshold / sample position setup for accurate measurements on high-speed buses
simultaneous eye diagrams on all channels for quick identification of problem signals
Select from a wide variety of single-ended and differential general purpose and application-specific probes.
Add application software for insight to debug, analyze and optimize your system’s operation.
Purchase the speed and memory depth capability you need today and upgrade as your needs evolve. Use 16864AU to upgrade an existing 16864A.
Includes keyboard, mouse, accessories bag, power cord.

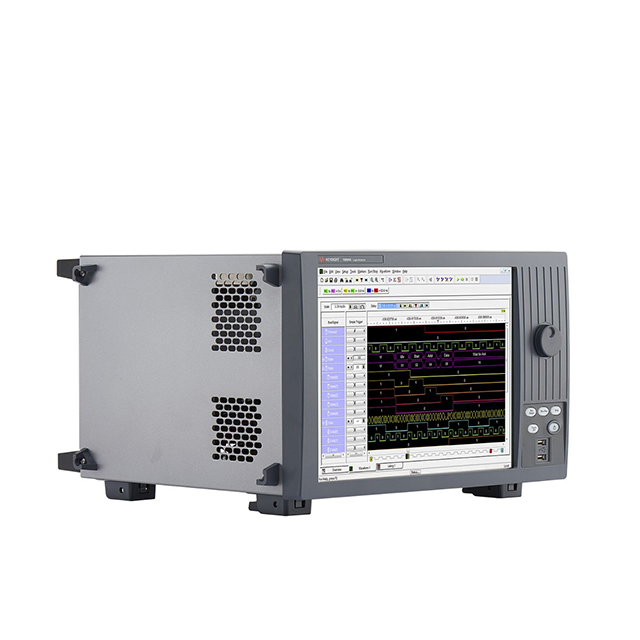

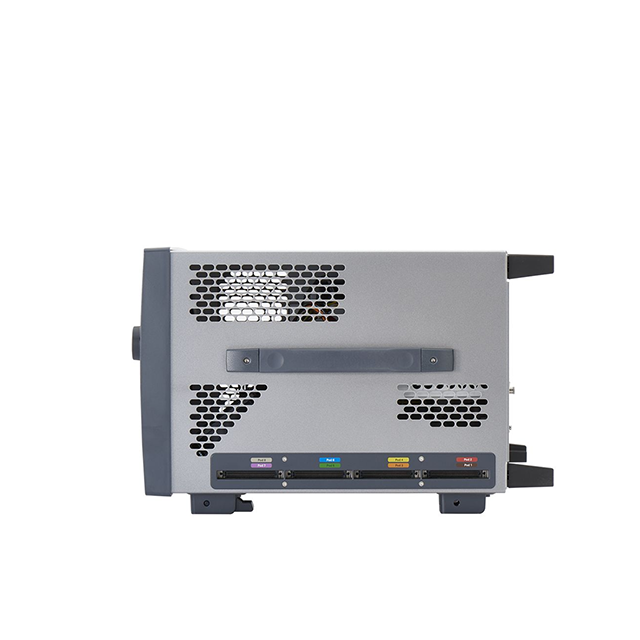

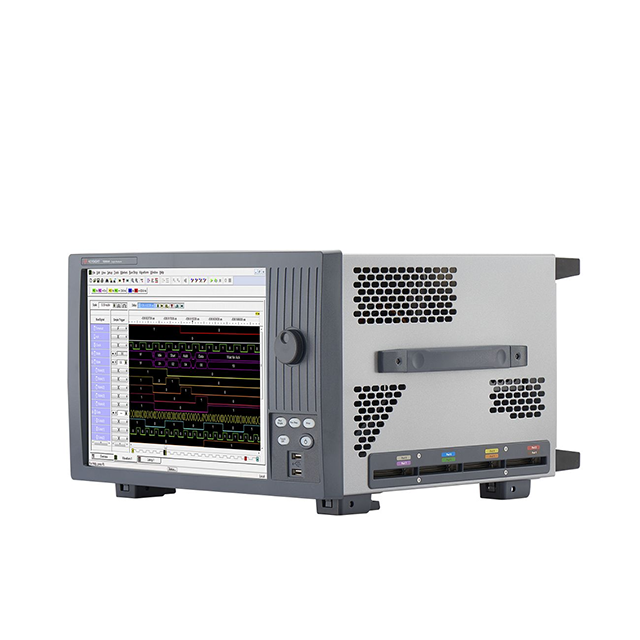

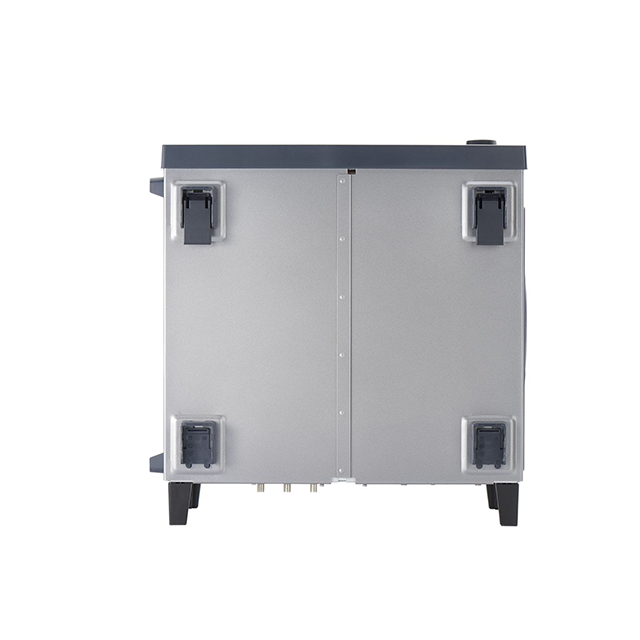

The 16864A portable logic analyzer provides the industry’s fastest, deep memory timing capture for digital debug.
