Keysight MSOX6002A Mixed Signal Oscilloscope: 1 GHz - 6 GHz, 2 Analog and 16 Digital Channels

产品介绍

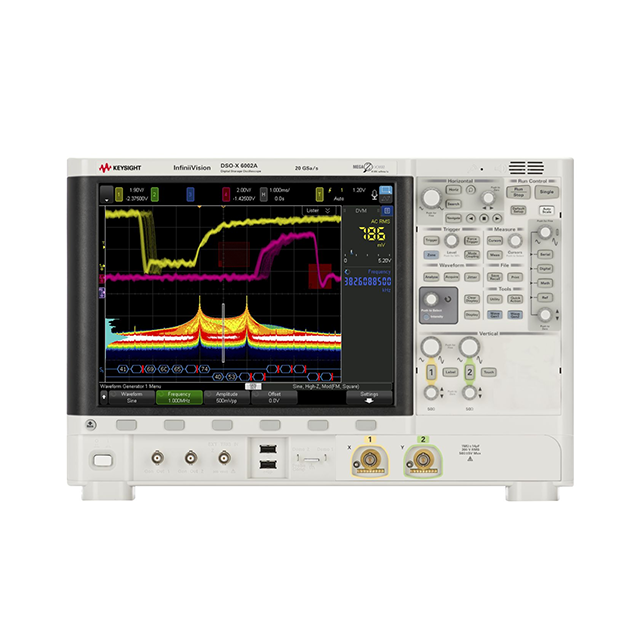

The Keysight MSOX6002A InfiniiVision 6000 Series X-Series Digital Oscilloscope is a professional tool for high-precision analog and digital signal analysis that combines laboratory-level performance with portability and ease of operation.

Designed for development engineers, RF/RF testers, digital buses, power electronics, embedded systems, and automotive modules that require high bandwidth, stable synchronization, and detailed process visualization.




With up to 6 GHz bandwidth, 20 GS/s sampling rate, 4 MTPS (1/2 channels) memory depth, and up to 450,000 waveforms/s refresh rate, the oscilloscope combines high performance, advanced analytics, and intuitive touch control on a 12.1-inch Full HD multi-touch display.




With built-in MegaZoom IV technology, hardware Zone Touch Trigger, and support for up to 56 automated measurements, the instrument is capable of visualizing complex multi-channel processes and capturing rare anomalies in real time.

The oscilloscope combines seven instruments in a single package, reducing the need for separate equipment and improving the efficiency of the lab or production area:




 Oscilloscope (2 analog channels, up to 6 GHz)

 Serial protocol analyzer (up to 15 interfaces, including I²C, SPI, UART, CAN, LIN, USB 2.0, FlexRay, ARINC 429, etc.)

 16-Channel Logic Analyzer (MSO)

 20 MHz WaveGen Dual-Channel Signal Generator (Option DSOX6WAVEGEN2)

 Digital Voltmeter (DVM)

 Frequency Response Analyzer (Bode Plot)

 10-bit counter and tote (up to 3.2 GHz)

The instrument supports modern data buses, performs spectral analysis using FFT and real-time jitter and eye diagram analyses (options D6000USBB, D6000BDLB).

Low self-noise (210 μV rms at 1 mV/div) and high vertical resolution of up to 12 bits (High Resolution mode) ensure accurate measurements even when observing small signals.




Scope of application:




 Debugging and analysis of high-speed digital interfaces (PCIe, USB, CAN FD, FlexRay, Ethernet)

 Testing of RF/RF modules and power supplies

 control of electronic components of automotive and aviation systems;

 development and verification of embedded devices;

 research and training laboratories.

Features

 1 GHz bandwidth (extendable under license to 2.5 / 4 / 6 GHz)

 Maximum sample rate of 20 GS/s (1/2 channels)

 Memory depth 4 Mtps (1/2 channels) / 2 Slots (all channels)

 Waveform update rate up to 450,000 forms/s

 Low noise level of 210 μVrms at 1 mV/div (6 GHz)

 Full HD 12.1" TFT Touch Display with Gesture Control

 Hardware Zone Touch Trigger

 Support for up to 56 automated measurements and advanced math

 Hardware decoding of up to 15 protocols (including USB, CAN, ARINC, MIL-STD-1553, etc.)

 Built-in mask and limit testing

 Jitter Analysis and Eye Diagram (Real-Time) Options

 Integrated voice control in 14 languages

 Compatible with BenchVue and Infiniium Offline software
