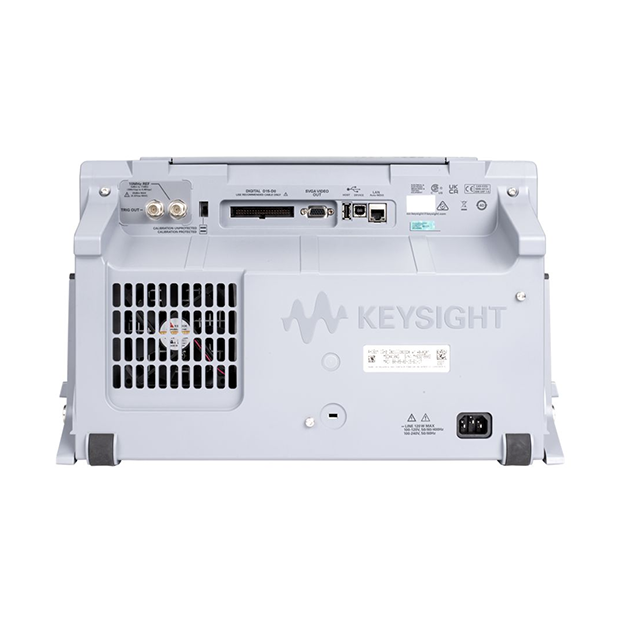

Keysight MSOX4052G Mixed Signal Oscilloscope: 500 MHz, 2 Analog Plus 16 Digital Channels

产品介绍

The Keysight MSOX4052G Mixed Signal Oscilloscope combines the functions of a high-speed analog oscilloscope with a 16-channel logic analyzer.

Designed for debugging embedded systems, digital-to-analog circuits, microcontrollers and data buses I²C, SPI, UART, CAN, LIN, USB PD.

The model comes with a pre-installed D4000GENB package that includes FRA, Bode Plot, Mask Test, and built-in decoding of major protocols.




MSOX4052G is equipped with a 12.1" touchscreen with a built-in dual-channel WaveGen 20 MHz oscillator.

The instrument guarantees high accuracy and minimal noise thanks to MegaZoom IV ASIC technology and High Resolution mode (up to 12 bits).




Features

 2 analog + 16 digital channels for combined analysis

 500 MHz frequency response, up to 5 GS/s (1/2 channels)

 Memory depth up to 4 Mtps / 2 Mtps (all channels)

 Update rate up to 1,000,000 waveforms/s

 Built-in 20 MHz WaveGen, DVM, counter, Mask Test, and FRA as standard

 Hardware decoding of I²C, SPI, UART, CAN, LIN, USB PD

 Touch controls and gesture GUI

 Upgradable to 1.5 GHz (DSOX4B5T154U)

 Compatible with Keysight BenchVue and Infiniium Offline software
