Keysight MSOX4054G Mixed Signal Oscilloscope: 500 MHz, 4 Analog Plus 16 Digital Channels

产品介绍

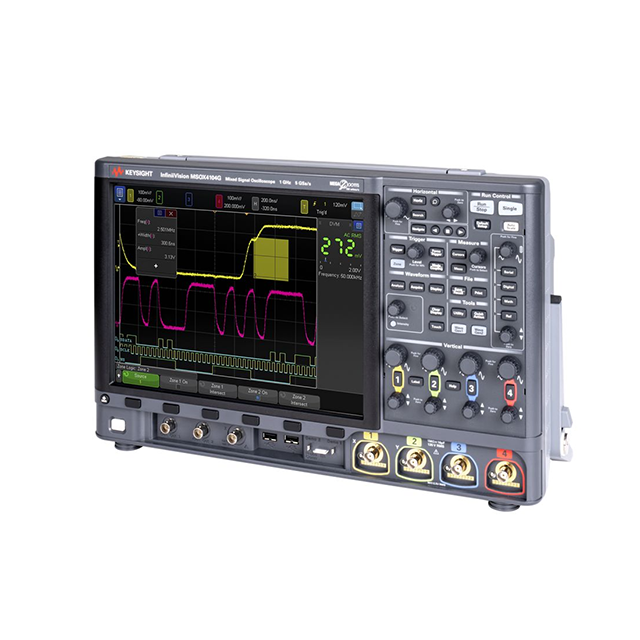

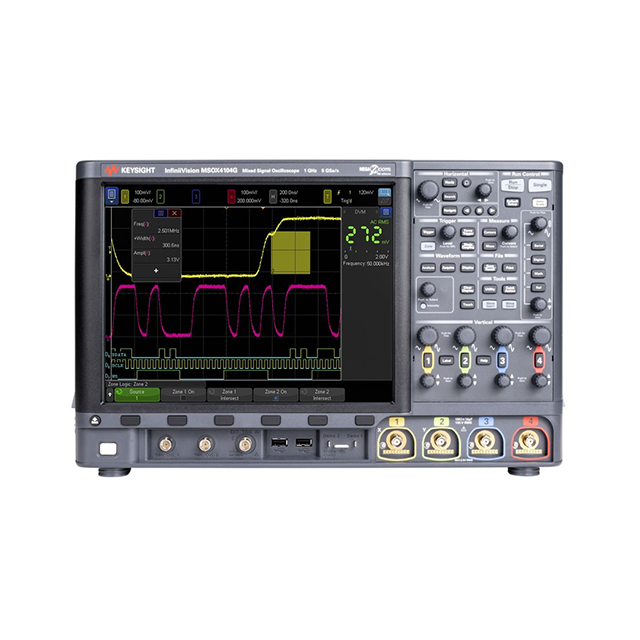

The Keysight MSOX4054G Mixed-Signal Oscilloscope is a versatile solution for combined analog and digital signal analysis in embedded systems and mixed circuits.

The model combines the accuracy and performance of an analog oscilloscope with the functionality of a logic analyzer.

Built-in 16 digital channels provide time synchronization with analog signals and real-time protocol analysis.




MSOX4054G is equipped with a 12.1" touchscreen display, a built-in dual-channel 20 MHz WaveGen oscillator and a pre-installed D4000GENB software package that includes FRA, Bode Plot, Mask Test and hardware decoding of major protocols.

The option to expand the bandwidth up to 1.5 GHz is supported.




Features

 4 analog + 16 digital channels for combined analysis

 500 MHz bandwidth (upgradable to 1.5 GHz)

 Sample rate up to 5 GS/s (1/2 channels) / 2.5 GS/s (all channels)

 Up to 1,000,000 waveforms/s refresh rate (MegaZoom IV ASIC)

 Built-in 20 MHz WaveGen, DVM and frequency counter

 Support for FRA, Bode Plot, Mask, and Limit Testing

 Hardware decoding of I²C, SPI, UART, CAN, LIN, USB PD protocols

 Touch interface and interactive gestures on the 12.1" display

 AutoProbe support (up to 4 active styli)

 Fully compatible with BenchVue and Infiniium Offline software
