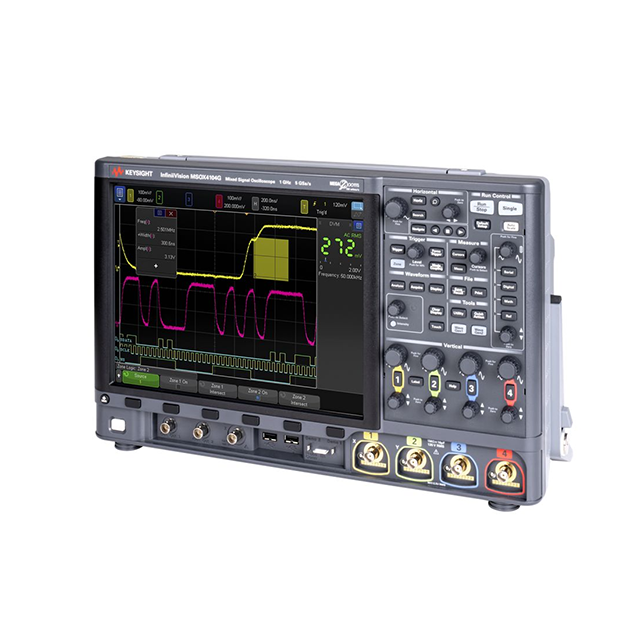

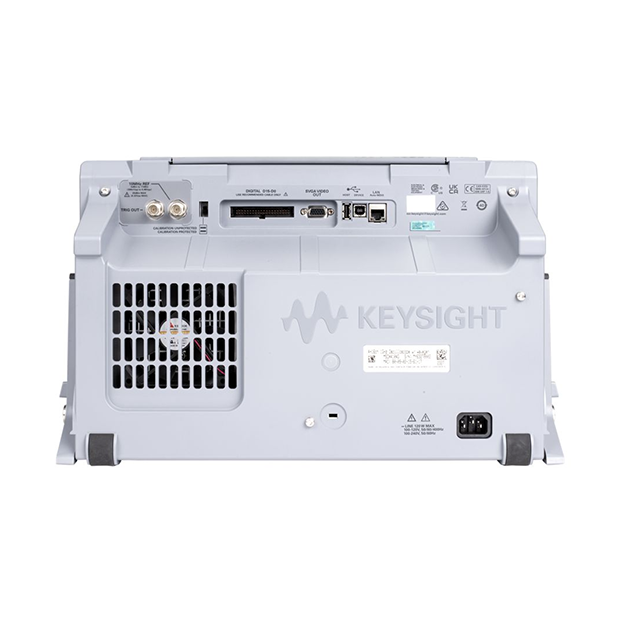

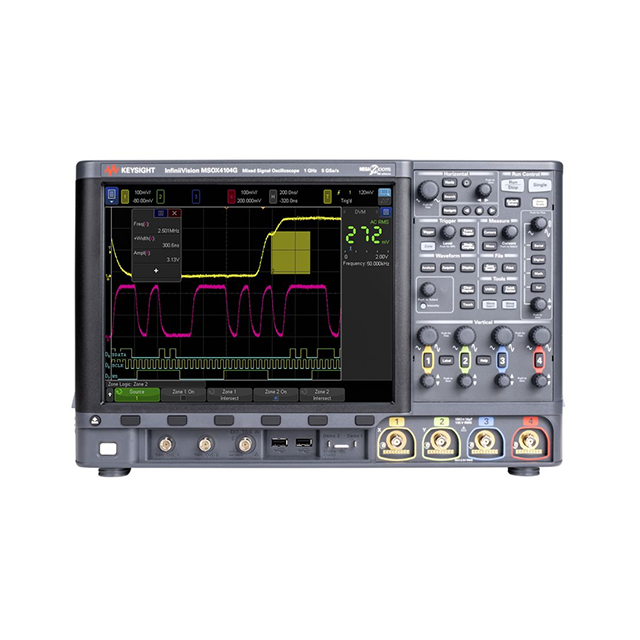

Keysight MSOX4154G Mixed Signal Oscilloscope: 1.5 GHz, 4 Analog Plus 16 Digital Channels

产品介绍

The Keysight MSOX4154G Mixed Signal Oscilloscope is the top-of-the-line model in the InfiniiVision 4000G X-Series that combines analog and digital signal analysis up to 1.5 GHz.

It provides full-fledged combined analysis of 16 digital and 4 analog channels, time correlation, and real-time protocol decoding.

Designed for professional R&D and RF labs that require simultaneous analysis of logic and analog signals.




MSOX4154G comes preloaded with a D4000GENB package that includes Mask Testing, Measurement Limit Testing, Frequency Response Analysis, Bode Plot, and Enhanced Video Analysis.

It supports all major I²C, SPI, UART/RS-232/422/485, CAN, LIN, USB PD, and I²S protocols, as well as High Resolution mode (up to 12 bits).




Features




 4 analog + 16 digital channels for combined analysis

 1.5 GHz bandwidth

 Up to 5 GS/s (1/2 channels), 2.5 GS/s (all channels)

 Memory depth up to 4 Mtps / 2 Mtps

 Update rate up to 1,000,000 waveforms/s

 Built-in WaveGen 20MHz, DVM, Frequency Counter, Mask Test, and FRA

 12.1" touchscreen display with gestures and built-in help

 Hardware decoding of I²C, SPI, UART, CAN, LIN, USB PD (in G standard)

 Advanced Testing Options: Power Analysis, USB 2.0 Signal Quality, and Video Analysis

 AutoProbe support (up to 4 active styli)

 Fully compatible with Keysight BenchVue and Infiniium Offline software
